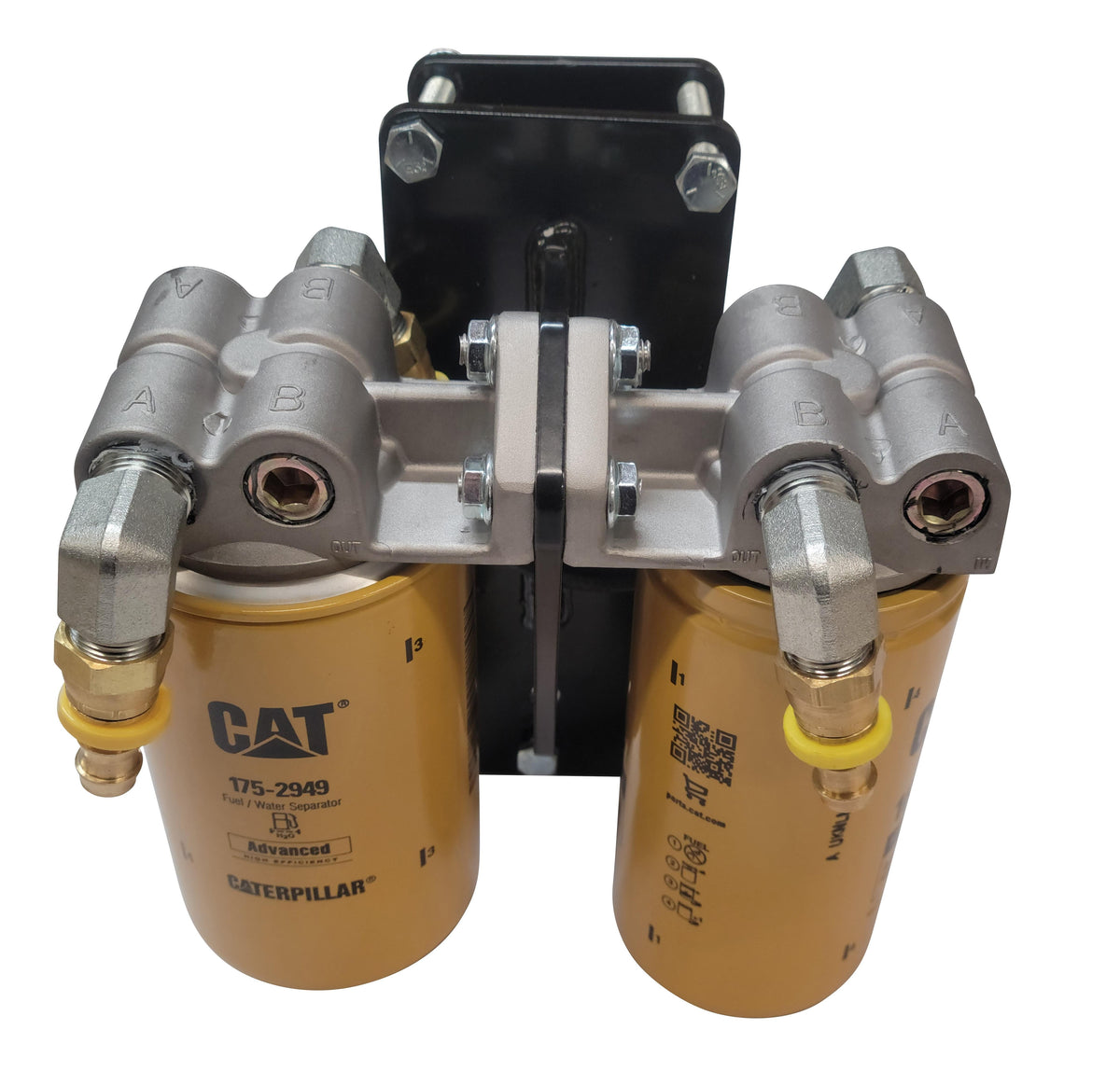

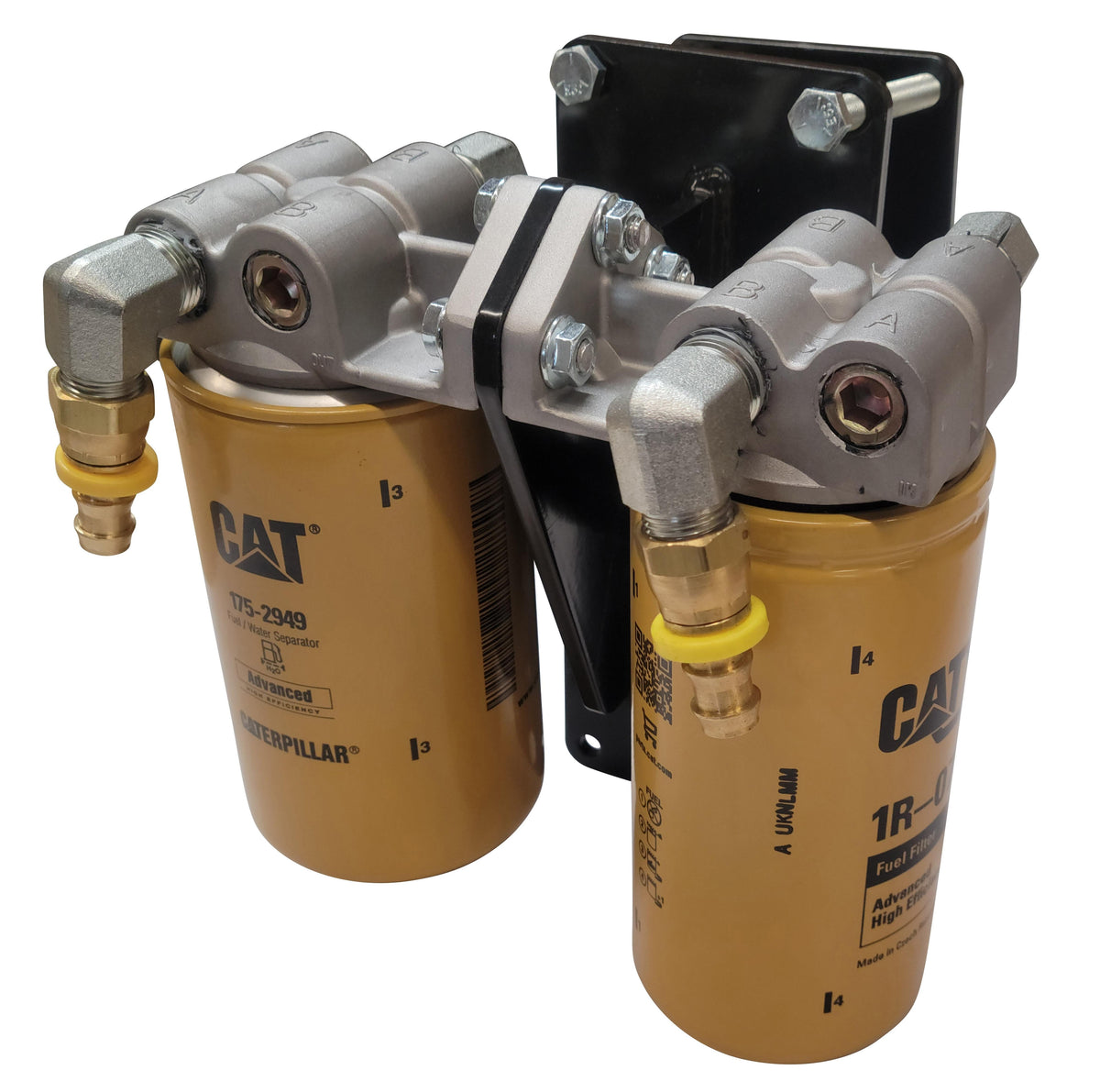

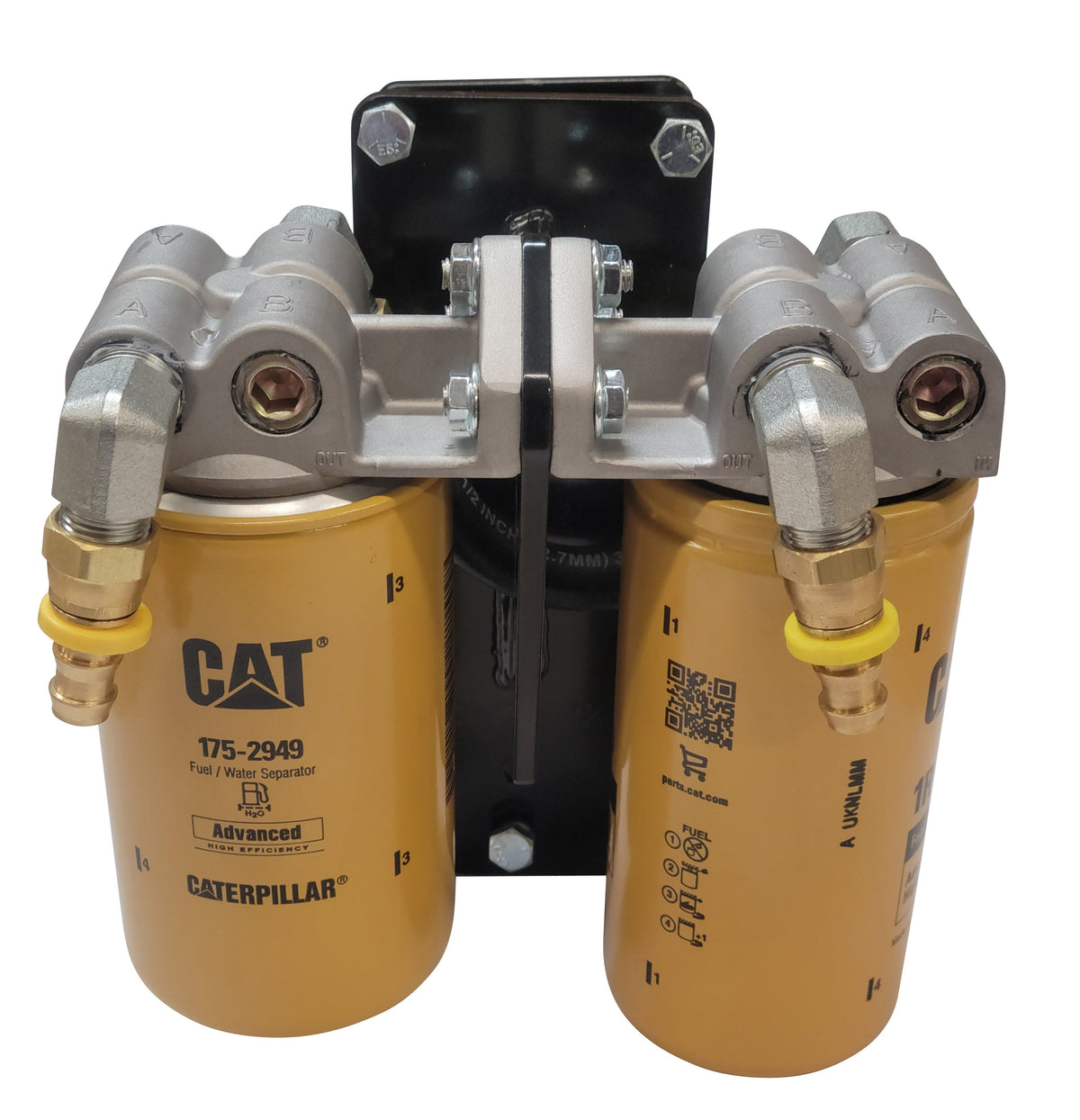

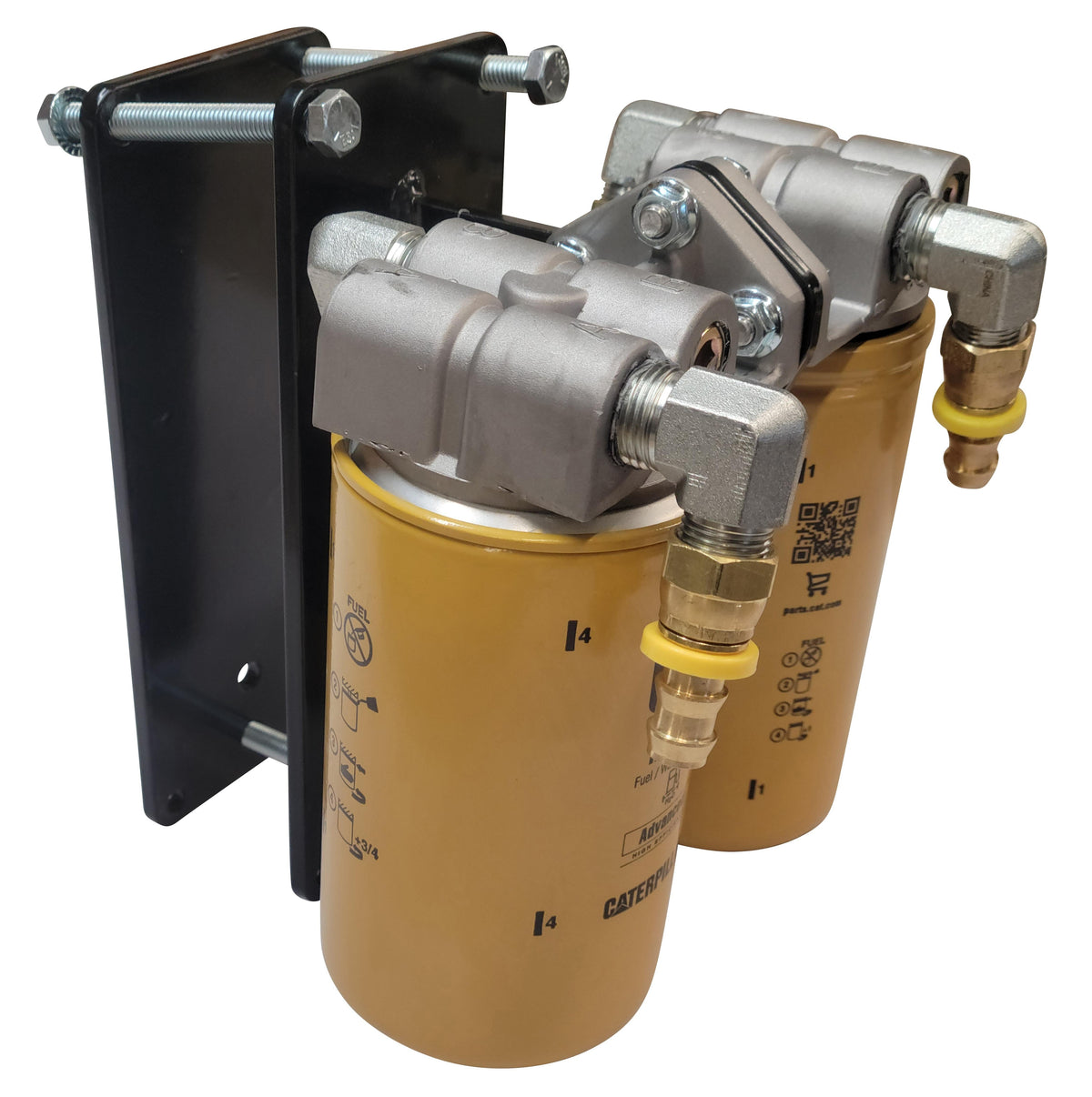

Dual Diesel CAT Fuel Filter Remote Mount Filter System

Dual Diesel Fuel Filter Mount

• No drill frame mount
• Accepts any 1"-14 filters
• 1/2" push lock hose barbs
• Fits frames up to 7.5" Tall
• Mounting plate can be bolted directly to frame if drilling is preferred
• Optional: CAT 1R-0750 & 175-2949 Filters
• Fuel Flows in Series
• Approximately 9" tall (depending on filter)  x 8" wide x 5.5" deep
• Assembly required
• No lift pump included

Short list of additional filters that can be used:

• 2 Micron CAT 1R-0749
• 2 Micron CAT 1R-0750
• 10 Micron CAT 175-2949 Water Separator
• 3 Micron water separator Wix 33005 / Napa 3005
• 14 Micron water separator WIX 33405 / Napa 3405
• 2 Micron Wix 33528 / Napa 3528
• 6 Micron Wix 33352 / Napa 3352
• 3 Micron Donaldson P551311
• 5 Micron Baldwin BF7587
